immuner response.tif

Measuring immune response to 3D cultures

1.Establish 3D cell cultures in devices

2. Place in test chamber; open device

3.Pipet immune cells to test chamber

4.Assess immune cell migration and activity into devices by microscopy, flow cytometry, biochemical or histological approaches


Control siRNA

immune response mcherry raw cells omt.ti

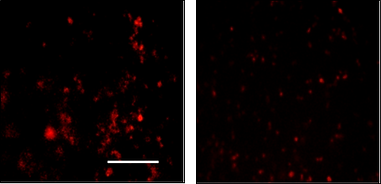

PyVmT carcinoma cells were transfected with control or CCR2 siRNAs and cultured in TheraKan      devices, which were placed in test chambers containing mcherry+ Raw264.7 macrophages.  Devices were imaged for the presence of mcherry+ cells by fluorescence microscopy after 24 hours. Scale bar=200 microns.  (Adapted from Brummer et al. Oncogene 2020)
